Celery Deep Liquid Flow Cultivation Container
Product illustration: images/vegetable/HVC-V05.jpg (Celery grown in a deep liquid culture tank)
I. Product Overview
Celery has a relatively long growing period and high water requirements. The HVC-V05 cultivar employs deep liquid flow cultivation combined with a high dissolved oxygen circulation system, supplemented by a prolonged nutrient supply strategy, enabling continuous harvesting after a single planting; the resulting leaves have tender stems and low fiber content.
II. Core Competitive Advantages
● Deep liquid flow irrigation:可控 root immersion depth ensures stable nutrient supply during extended cultivation periods.
● High dissolved oxygen circulation: Circulating aeration helps suppress root diseases and is suitable for long-season crops grown over a period of 60–80 days.
● Planting cup design: The planting cup facilitates individual plant adjustment and batch harvesting.
● Low-loss harvesting: Smooth material flow from the ground to the shelving facilitates whole-plant or staged harvesting.
III. Typical Technical Specifications
project | parameter |

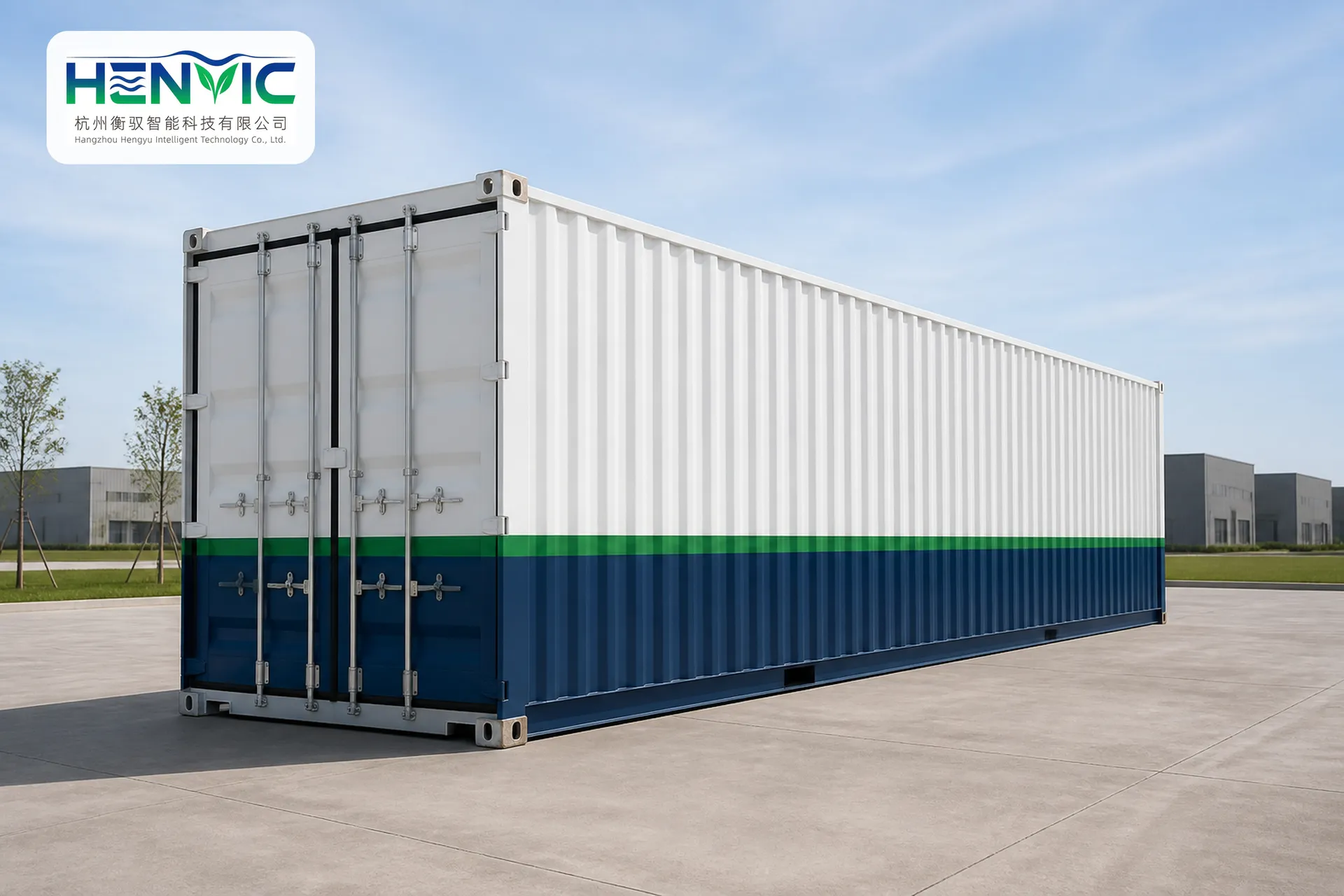

outline dimension | 12000 × 2438 × 2896 mm (40 feet) |
Number of cultivation layers | 3–4 layer |
Effective planting area | 70–95 m² |
growth cycle | 60–80 days |
Temperature control range | 16–22 ℃（±1 ℃） |
relative humidity | 65%–80% RH |
beam | LED 220–380 μmol/(m²·s) |
EC / pH | 1.8–2.2 mS/cm ｜ 5.8–6.5 |
installed power | 12–16 kW |
source | 380 V / 50 Hz Three-phase |
IV. System Configuration
Deep liquid flow cultivation tank, transplanting cups and cover plate, circulation aeration pump set, nutrient solution disinfection module, automatic EC/pH fertilization system, full-spectrum LED lighting system, constant-temperature fresh air supply and dehumidification unit, intelligent control cabinet.
V. Applicable Varieties
Various celery varieties, including celery, Chinese celery, and scallion celery.
VI.适用场景
Stable urban celery supply chain; supporting processing infrastructure for fresh-cut vegetables; ingredient supply base for restaurant chains.
VII. Delivery and Installation
Whole crates are shipped from the factory; commissioning is completed within 4 working days following on-site hoisting and electrical connection; long-term nutrient management and pest/disease prevention guidance are also provided.
VIII. After-Sales Service
12-month overall warranty; annual maintenance and remote operational support for the circulation pump set and aeration system.
