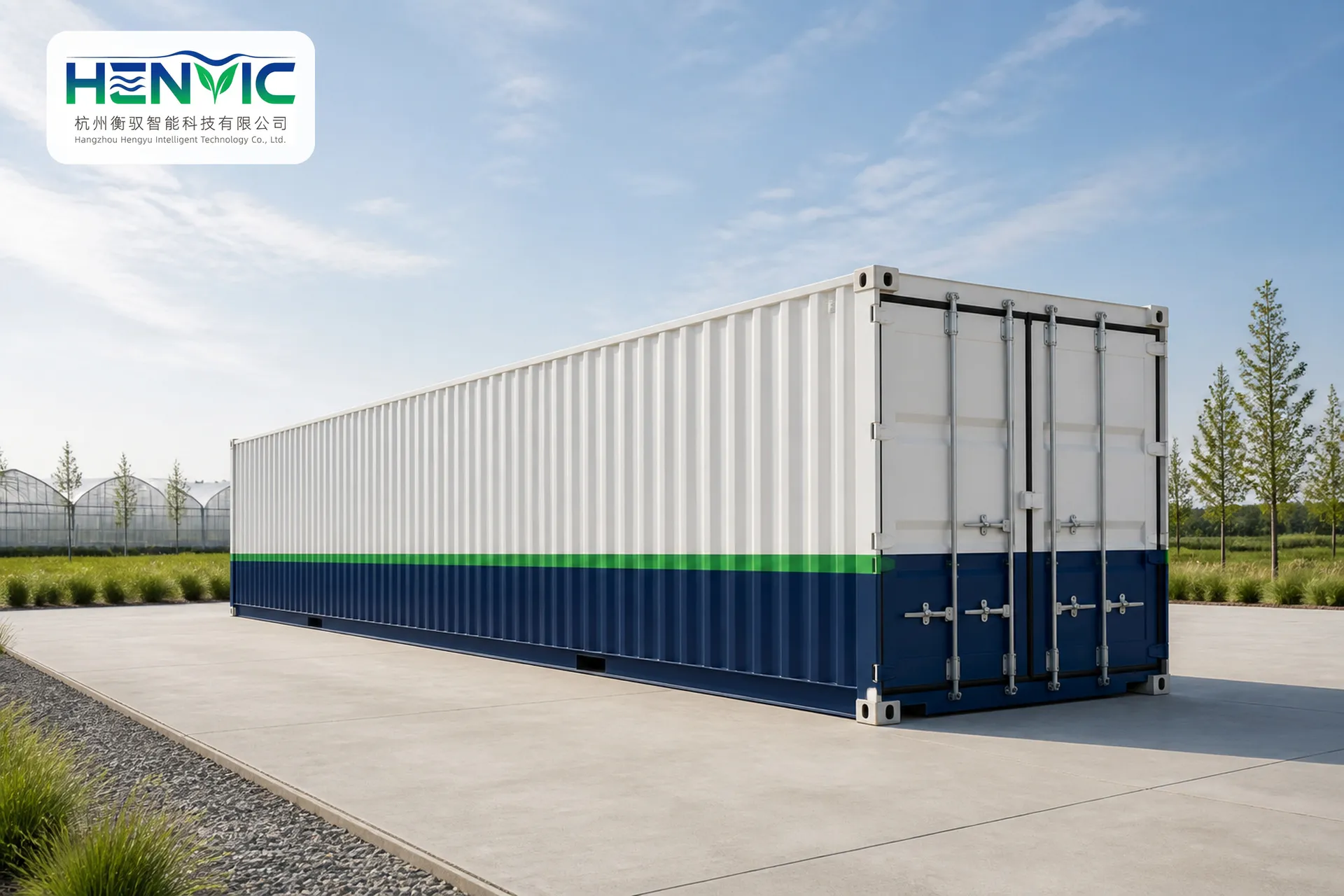

HVC-M06 Enoki Mushroom Low-Temperature Cultivation Container
HVC-M06 Enoki Mushroom Low-Temperature Cultivation Container
Product illustration: images/mushroom/HVC-M06.jpg (Ultrasonic Nebulization Humidification System)
. Product Overview
The key to industrialized cultivation of enoki mushrooms lies in the combined control of "low temperature + high humidity + moderately high CO₂ concentration + weak light." The HVC-M06 system, centered around a low-temperature unit and an ultrasonic atomization humidification system, combined with adjustable CO₂ concentration, suppresses cap expansion, resulting in commercial-quality mushrooms with straight stems and pure white coloration.
II. Core Competencies
● Low-temperature stable operation: The unit can operate continuously over an extended period within the 8–15°C temperature range, offering excellent energy efficiency.
● No water droplets with atomized humidification: Ultrasonic atomization fineates the mist particles, preventing the fruiting bodies from coming into direct contact with water.
● CO₂ inhibits canopy expansion: the concentration can be precisely adjusted within the range of 800–2000 ppm to shape straighter stem morphology.
● Low-light/Dark mode: This feature allows you to disable the lighting to prevent the mushroom from pigmentation.
III. Typical Technical Specifications
project | parameter |
outline dimension | 12000 × 2438 × 2896 mm (40 feet) |
Effective cultivation area | 45–60 m² |
Temperature control range | 8–15 ℃（±0.5 ℃） |
relative humidity | 85%–95% RH |
CO₂ concentration | 800–2000 ppm (adjustable) |
beam | 0–100 lux (can be turned off) |
installed power | 13–17 kW |
source | 380 V / 50 Hz Three-phase |
IV. System Configuration
Low-temperature variable-frequency drive unit; ultrasonic atomization humidification system (including stainless steel nozzles and water supply piping); CO₂ concentration adjustment module; shading lining and low-brightness LED lighting; multi-tiered bottle-or bag-based shelving; fresh air heat exchange and filtration system; intelligent control cabinet.
V. Applicable Varieties
Oyster mushrooms, crab mushroom, white button mushrooms, and other mushroom varieties suitable for industrial cultivation under low-temperature, low-light conditions.
VI.适用场景
Oyster mushroom industrial production line, mushroom cultivation cooperative, and high-end fresh mushroom supply base.
VII. Delivery and Installation
Perform pressure testing on the atomization system and low-temperature continuous operation testing before shipment; complete commissioning within 3–5 working days after on-site hoisting and power connection.
VIII. After-Sales Service
12-month overall warranty; consumable supplies (including atomization nozzles and filters) are provided; remote parameter optimization is supported.
